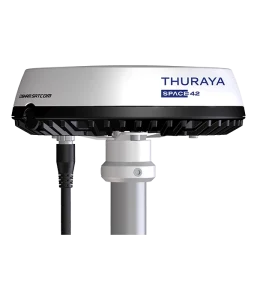

Thuraya Orion NEO
Maritime-Optimised L-Band Broadband
Delivers secure voice and IP data connectivity across blue-water and coastal routes.
Stable Connectivity in Heavy Seas
Maintains link performance during vessel motion and ship roll.
Compact, Weather-Sealed Dome
Low-profile IP68 design built to withstand harsh maritime environments.
Integrated Voice & Data Services
Embedded SIP/VoIP and routing reduce the need for additional onboard equipment.
Flexible Power & Networking
Supports DC and PoE power with integrated Ethernet and Wi-Fi access.
Multi-GNSS Support
Enables accurate positioning for maritime operations and situational awareness.
Antenna height: 9.7 mm
Antenna width: Ø 32.1 mm
4.8 kg
- > 50° elevation:
Tx: Up to 1024 kbps (no ship roll)
Rx: Up to 1024 kbps (30° ship roll) - > 20° elevation:
Tx: Up to 1024 kbps (no ship roll)
Rx: Up to 600 kbps (30° ship roll) - > 10° elevation:
Tx/Rx: Up to 600 kbps (no ship roll)
- Standard VoIP
- Embedded SIP Server
- PTT with Mobile Gateway Neo
Tx: 1626.5 – 1660.5 and 1668 – 1675 (MHz)
Rx: 1518.0 – 1559.0 (MHz)
GPS, Galileo, Beidou, Glonassr
EN, AR, FR, DE, ES, RU, JP, CN
CE, RED, RoHS, WEEE, FCC, UL, RCM Thuraya Type Approval
- Temperature
Operational (ambient): -25°C to +55°C
Storage: -40°C to +85°C - Water and dust: IP68
- Relative humidity
MIL-STD-810G, Test method 507.6 - EMI/EMC
EN 01-301489, EN 17-301489,
EN 19-301489
DC input range: 12 – 24 VDC (Max. 10.8 to 32 VDC)
Power (max): 70W (@10.5 – 32V)
- WLAN Access Point: 802.11 b/g/n/ac
- Ethernet: 10 / 100 / 1000 Mbps
- Combined DC power and Ethernet connector
Combined connector providing DC power input,
ignition and Ethernet (PoE 802.3bt Type 3) connectivity. - User interface
One LED (Status), Web Interface,
Reset Button, SIM card connector
- Space42 Connect App
Turns a Smartphone into a Satphone.
Available for Android / IOS. - Set-up and Router Functionality
Webserver, NAT Router, Admin control (password protected),
DHCP, Network Management, Remote Management, PPPoE
- Thuraya Voyager NEO Terminal with 3 cm spacers
- Quick Start Guide
- 6m hybrid DC power and Ethernet cable (open-ended)
- 403723B-009: Magnetic Mount kit
- 403706B-050: Connection Box
- 408030A-931: Hybrid DC / Ethernet cable, 6m open-ended
- 408030A-941: PoE connection cable (Cat6A), 6m open-ended
- 408030A-945: PoE connection cable (Cat6A), 25m open-ended
- 408030A-948: PoE connection cable (Cat6A), 50m open-ended
